As smartphone functions become more and more powerful, the demand for power consumption of mobile phones has also increased, and low-rate charging standards have been difficult to meet the demand for charging. At this time, the lithium battery technology has also developed greatly, the stability is better, the tolerance of charge and discharge has also improved, and "fast charge" has begun to enter the stage. PiC can offer a wide range of low-impedance components to meet the charging efficiency requirements of Quick Charge 2.0/3.0.

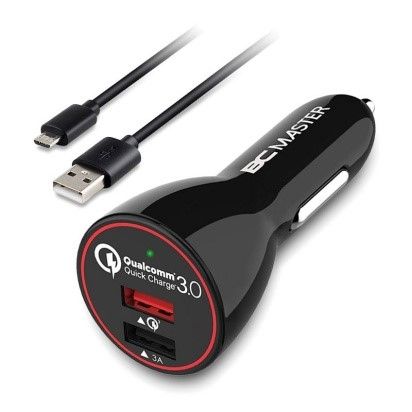

QC 2.0 / 3.0(5W-18W Charger) Application Recommended Device
| Function |
Spec. |
Package Type |
Recommended Parts |
| Low Voltage MosFET |
N-CH 100V 25mOhm |
SOP-8 |
PAN00T26J |
| N-CH 100V 16mOhm |
SOP-8 |
PAN00T40J |
| N-CH 80V 12mOhm |
SOP-8 |
PAN80T16J |
| N-CH 60V 5.0mOhm |
SOP-8 |
PAN60T40J |
| N-CH 60V 12mOhm |
SOP-8 |
PAN60T16J |
| Schottky Diode |
1.0A / 40V Low VF=0.42V |
SOD-123HE |
SS1040LHE |
| 2.0A / 40V Low VF=0.45V |
SOD-123HE |
SS2040LHE |
| 3.0A / 45V Low VF |
SMA-S |
SS3045LAS |
| 10A / 45V |
TO-277 |
PS10P45 |
| 10A / 45V Low VF=0.45V |
TO-277 |
PS10P45L |
| 8A / 45V Low VF=0.45V |
TO-277 |
PS8P45L |
