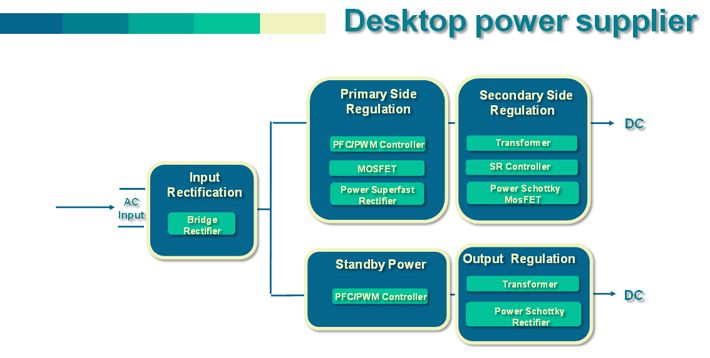

Desktop power supplier
Desktop power supplier
| Application | Function | Spec. | Package Type | Recommended Parts |
|---|---|---|---|---|
| Primary Side Regulation | PWM/PFC Controller | 5A/600V 35ns | TO-220 | ER506CT |
| 8A/600V 35ns | TO-220 | ER806CT | ||
| 10A/600V 35ns | TO-220 | ER1006CT | ||
| Secondary side regulation | SR Controller | N-CH 40V 1.8mOhm | DFN5X6A-EP1 | PAN40S48Y |
| N-CH 60V 4.8mOhm | DFN5X6A-EP1 | PAN60T24AY | ||
| N-CH 80V 6.5mOhm | DFN5X6A-EP1 | PAN80T24AY | ||
| N-CH 100V 10mOhm | DFN5X6A-EP1 | PAN00T24AY | ||
| N-CH 40V 3.3mOhm | TO-220 | PAN40T24AG | ||
| N-CH 60V 4.8mOhm | TO-220 | PAN60T24AG | ||
| N-CH 80V 6.5mOhm | TO-220 | PAN80T24AG | ||
| N-CH 100V 10mOhm | TO-220 | PAN00T24AG | ||
| Standy Power Output | Power Schottky Rectifier | 5A/45V Low VF | TO-277 | PS5P45 |
| 5A/60V Low VF | TO-277 | PS5P60 | ||
| 10A/45V Low VF | TO-277 | PS10P45 | ||
| 10A/60V Low VF | TO-277 | PS10P60 |
