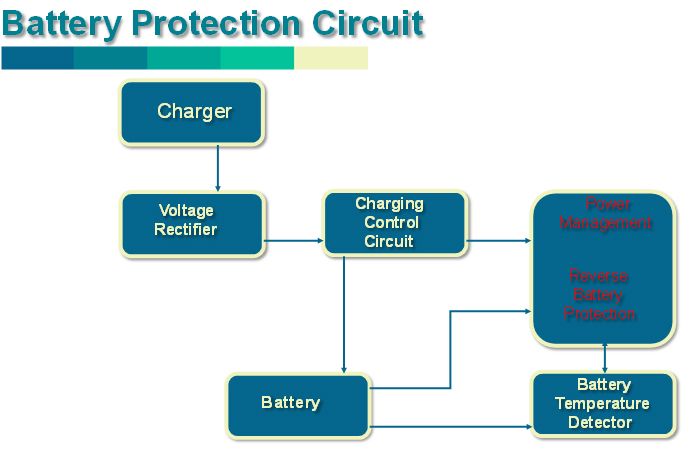

Battery Protection Circuit
Battery management requires MOSFETs, diodes (diodes), ESD and other devices. PiC's MOSFET portfolio includes P-channel devices and N-channel devices for high quality and reliability for Li-Ion battery protection circuits. MosFETs built on the latest 8-inch Trench process have low conduction losses, helping to extend battery life.
Battery Pack Protection Application Recommended Device
| Application | Function | Spec. | Package Type | Recommended Parts |
|---|---|---|---|---|
| Reverse Battery Protection |
Low Voltage MosFET | Dual N-CH 20V/11A | DFN 2x3 | PAN82T33F |
| Dual N-CH 20V/9.5A | DFN 2x3 | PAN82T04F | ||
| Dual N-CH 20V/56A | DFN 3x3 | PAN20T30QD | ||
| Dual N-CH 30V/3.6A | TSOP-6 | PAN3062C | ||
| Small Signal Schottky | 30V/200mA | SOT-23 | BAT54 | |
| 100V/150mA | SOT-23 | BAV70 | ||
| Schottky | 1.0A / 40V Low VF | SOD-323HE | SS1040LHEW | |
| 2.0A / 40V Low VF | SOD-323HE | SS2040LHEW |
