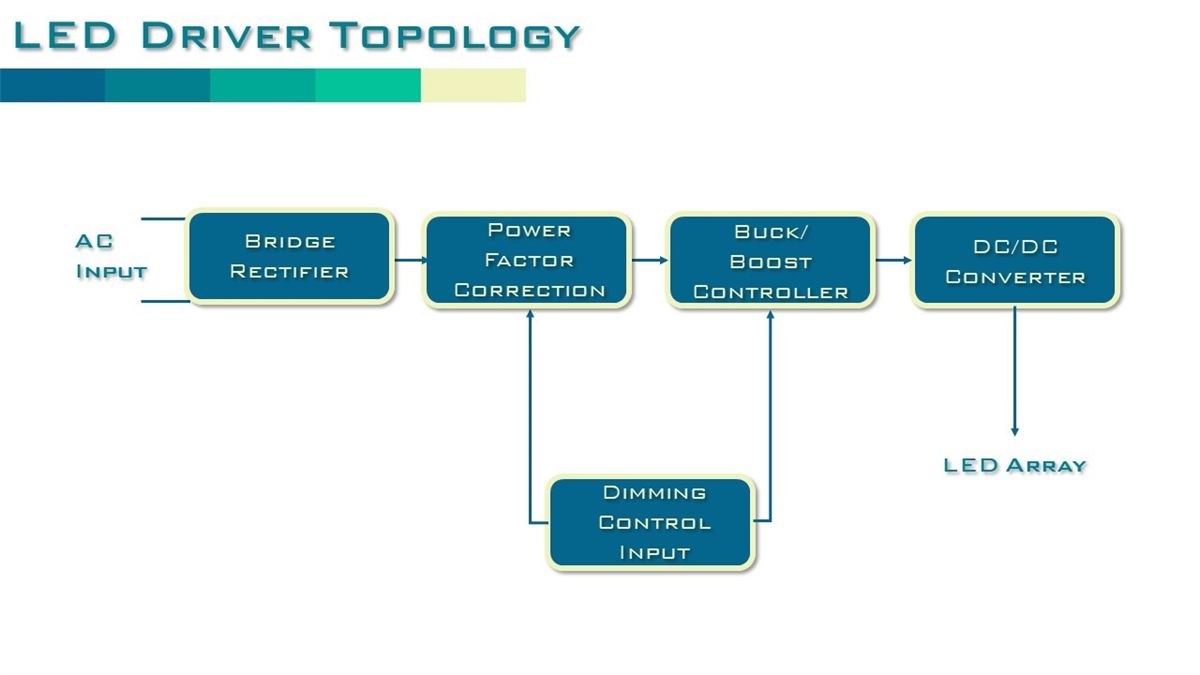

LED Driver(for Panel light)
The increasing demand for ecological and environmentally friendly products in the market has driven the rapid replacement of traditional lighting with LED lights. PiC offers a wide range of semiconductor device products for LED lighting applications and helps reduce power consumption, efficiency and compact size component for LED lighting applications. Developed devices with higher power densities to achieve higher current ratings in smaller packages and improve overall efficiency. This effort can bring a smaller, brighter and more efficient lighting.
LED Panel light Application Recommended Device (18W-60W)
| Application | Function | Spec. | Package Type | Recommended Parts |
|---|---|---|---|---|
| Primary Side Regulation | High Voltage MosFET | N-CH 6A/700V | Dpack | xxxxx |
| Fast Recovery Diode | 1A/1000V trr=500ns | SOD-123FL | RS1010FL | |
| SMA | RS1M | |||
| High Effienicy Diode | 1A/800V trr=75ns | SOD-123FL | US1008FL | |
| SMA | US1K | |||
| Super Fast Diode | 5A/600V trr=35ns | SMC | EK5J | |
| SMB | EK5JB | |||
| Secondary side regulation | Schottky Diode | 3.0A / 60V | SMA | SK36 |
| 1.0A / 40V | SMA | SK14 | ||
| TVS | 200W series | SMF | SMFXXX | |
| 600W series | SMB | P6SMBJXXX | ||
| Dimming Ctrl. | Low Voltage MosFET | N-CH 100V 310mOhm | SOT-223 | PAN00T08QB |
| N-CH 100V 310mOhm | SOT-23 | PAN0018N | ||
| N-CH 100V 310mOhm | SOT-89 | PAN00T08K | ||
| N-CH 100V 310mOhm | TO-252 | PAN00T08X | ||
| N-CH 150V 250mOhm | TO-252 | PAN10N15X |
