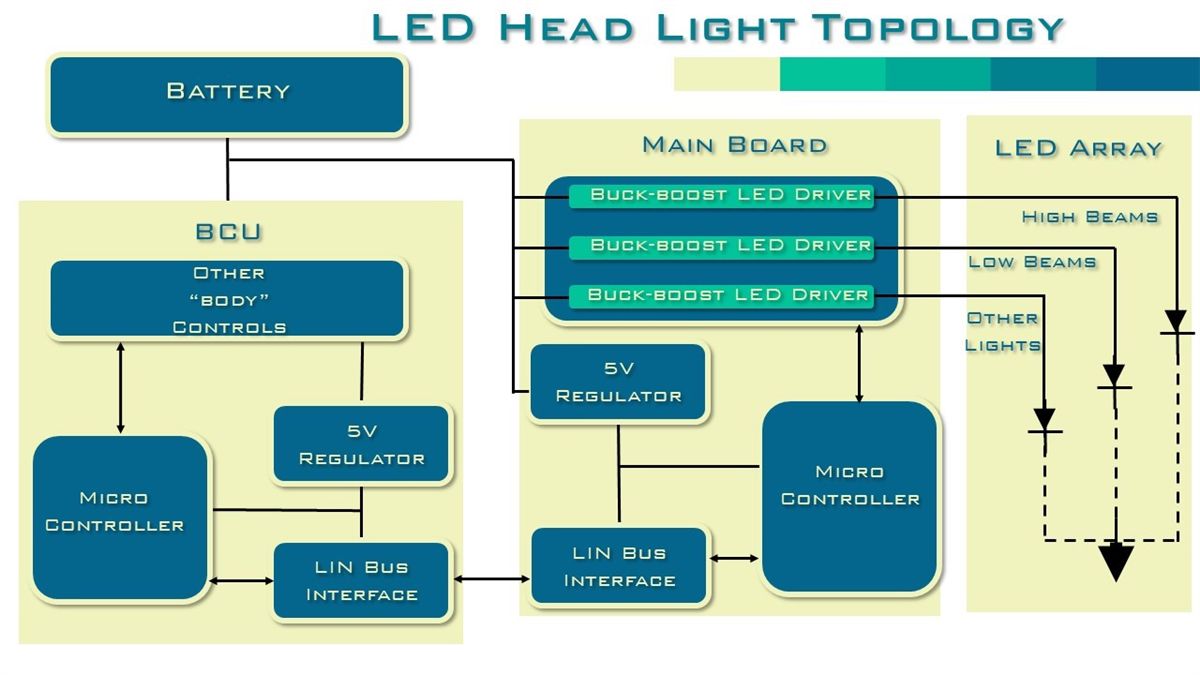

LED Head Lighting Toplogy
![](../WebFiles/d6ee515f-2895-4694-9544-691f93edd573.jpg)
LED Head Lighting Application Recommended Device(output 12V-24V)
Application | Function | Spec. | Package Type | Recommended Parts |
---|---|---|---|---|
Power Regulator Boost | Low Voltage MosFET | N-CH 60V 10mOhm | DFN5X6A-EP1 | PAN60T40Y |
N-CH 100V 20mOhm | DFN5X6A-EP1 | PAN00T40Y | ||
N-CH 100V 47mOhm | TO-252 | PAN00T16X | ||
N-CH 100V 22mOhm | TO-252 | PAN00T18X | ||
Power Regulator | Schottky | 5.0A / 100V Low VF, Low IR | SMA-HE | SS5100AHE |
5.0A / 100V Low VF, Low IR | SMB | SK510LB | ||
10A / 100V Low VF, Low IR | TO-277 | PS10P100L | ||
TVS | 600W series | SMB | P6SMBXXCA | |
1000W series | SMB | SMB10JXXCA |
